Electric Glass Film

Electric Glass Film

A innovative PDLC technology glass film.
Send Inquiry
Description
Technical Parameters

Product Introduction

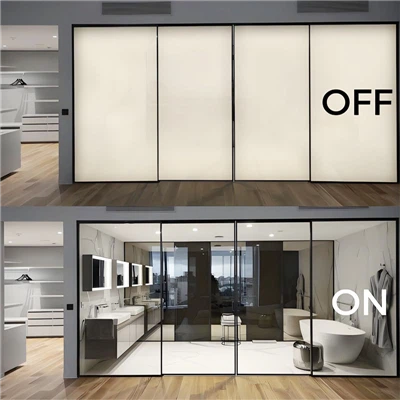

Electric glass film is based on advanced PDLC (Polymer Dispersed Liquid Crystal) technology, enhanced through AI-driven innovation, allowing it to switch between on and off states as needed. PDLC window film can be easily operated via a remote control, or wall switch.Power on,it's clear,power off,it turns frosted.





Application and Advantages





The PDLC window privacy film is a versatile solution suitable for home glass, offices, retail stores, schools, banks, hotel, clinic and hospitals.

It can also serve as a high-contrast rear projection surface, allowing you to transform ordinary windows into display screens or even a private cinema.

This smart PDLC window film can be be installed directly onto existing glass surfaces, so it helps save the cost of replacing glass and upgrade existing glass into privacy glass.

Another key advantages of smart film is that it removes the need for traditional window coverings such as blinds, curtains, or shades, which means the PDLC window film cost less than traditional curtains from long time lasting.



Privacy Performance



When translucent mode, the switchable PDLC window film is an electronic blind providing privacy and security, while still allowing daylight penetrating.

This smart film is perfect choice for utilizing on glasses in meeting rooms, just a flick on the remote to add instant privacy during important meetings.

It delivers the same level of privacy as traditional window blinds, while its simple yet elegant operation creates a lasting impression on visitors

smart film



PDLC film
smart film PDLC
SMART PDLC FILM


As an increasing number of architects and interior designers incorporate smart glass film into their designs and projects, the market is anticipated to keep growing, expanding into new and innovative applications for privacy glass.



Datasheet For Smart Film
Optical Characteristics
ITEM ON/OFF Super Clear Ultra Clear
Visible Light Transmittance ON 89% 92%
OFF 75% 78%
Parallel Light Transmittance ON 80% 82%
OFF <5% <5%
IR Blocking ON 13.60% 14.00%
OFF 82.00% 82.00%
UV Blocking ON 54% 54%
OFF 95.80% 95.80%
Haze ON 1.80% 1.70%
OFF 85% 85%
View Angle ON 160∠ 160∠
Electrical Characteristics
Working Voltage ON AC36V-AC60V AC36V-AC60V
Saturation voltage ON AC60V AC60V
Response Time ON-OFF 45ms 45ms
  OFF-ON 10ms 10ms
Power Consumption ON 5W/㎡ 5W/㎡
Dimension
Color   white white
Thickness   0.38mm 0.38mm
Max.Width   1800mm 1800mm
Size in roll   1.2m/1.5m/1.8m×50m 1.2m/1.5m/1.8m×50m
Ambient Condition
Working Temperature   20°C~70°C 20°C~70°C
Storage Temperature   normal normal
Life Span   600,000hrs 600,000hrs
Peel Strength(kg)   1.6-1.9 1.6-1.9
